Prompt Engineering: Retrieval Augmented Generation(RAG)

Implement RAG technique using Langchain, ChromaDB on GPT 3.5 Turbo t for conversational chatbot on a PDF document.

A B Vijay Kumar
6 min readJul 23, 2023


In this blog, we will implement RAG using LlamaIndex framework to build a simple chatbot, to Q&A a bunch of documents

Game Plan

I In this blog, we will explore how RAG works and demonstrate its effectiveness through a practical example using GPT-3.5 Turbo to respond to a product manual as an additional corpus.

In this blog, we will explore how RAG works and demonstrate its effectiveness through a practical example using GPT-3.5 Turbo to respond to a product manual as an additional corpus.

Imagine you are tasked with developing a chatbot that can respond to queries about a particular product. This product has its own unique user manual, specific to the enterprise’s offerings. Traditional language models, like GPT-3, are typically trained on general data and may not have knowledge of this specific product. Fine-tuning the model with the new corpus might seem like a solution, but it comes with considerable costs and resource requirements.

Introduction of RAG

Retrieval Augmented Generation (RAG) offers a more efficient and effective way to address the issue of generating contextually appropriate responses in specialized domains. Instead of fine-tuning the entire language model with the new corpus, RAG leverages the power of retrieval to access relevant information on demand. By combining retrieval mechanisms with language models, RAG enhances the responses by incorporating external context. This external context can be provided as a vector embedding.

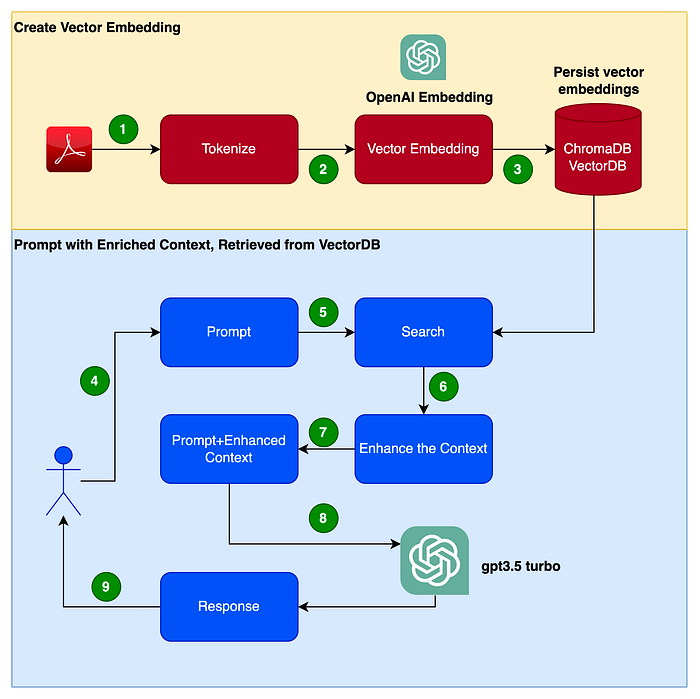

The following picture shows the flow of steps, we will follow to create our application.

  1. Read from the PDF (Clarett user manual PDF) and tokenize with a chunk_size of 1000 tokens
  2. Create a vector embedding of these tokens. We will be using OpenAIEmbeddings library to create the vector embeddings.
  3. Store the vector embeddings locally. We will be using simple ChromaDB as our VectorDB. We could be using Pinecone or any other such more highly available, production-grade VectorDBs instead.
  4. The user issues a prompt with the query/question.
  5. This issues a search and retrieval from the vectorDB to get more contextual data from the VectorDB.
  6. This contextual data is now will be used along with the prompt.
  7. The prompt is augmented by the context. This is typically referred to as context enrichment.
  8. The prompt along with the query/question and this enhanced context is now passed to the LLM
  9. LLM now responds back, based on this context.

We will be using the Focusrite Clarett user manual, as an additional corpus. Focusrite Clarett is a simple USB Audio Interface to record and playback audio. You can download the use manual from here

Get Hands Dirty

Setup virtual environment

Let's set up a virtual environment, to sandbox our implementation, to avoid any version/library/dependency conflicts. Execute the following commands to create a new Python virtual environment

pip install virtualenv
python3 -m venv ./venv
source venv/bin/activate

Create an OpenAI key

We will need an OpenAI key, to access the GPT. Let's create an OpenAI Key. You can create the OpenAIKey for free, by registering to OpenAI at

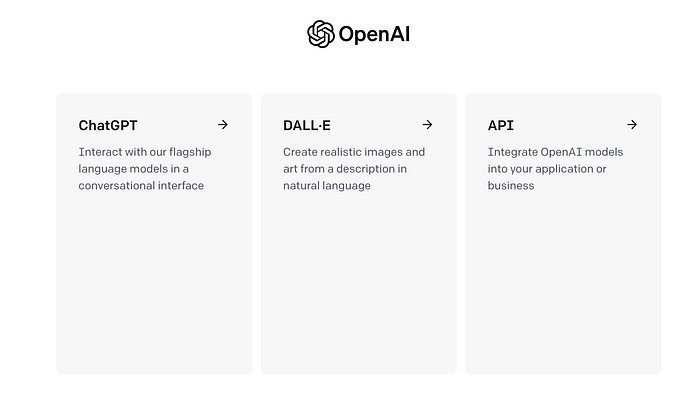

Once you register, log in, and select the API, Option, as shown in the screenshot (The screen designs may change, since I took the screenshot)

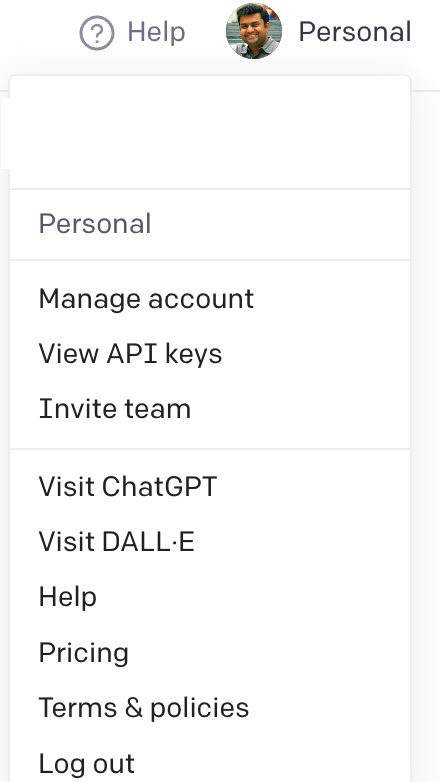

Go to your account settings and select “View API Keys”

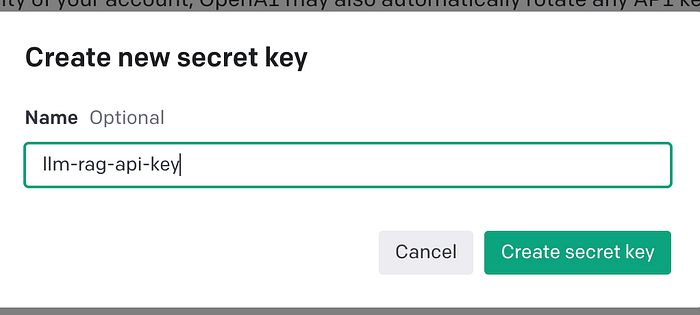

Select “Create new secret key”, and you will see a popup like below. Provide a name and this will generate a key.

This will generate a unique key, which you should copy to the clipboard, and store in a safe space.

Now let's write the Python code to implement all the steps shown in the above flow diagram

Install Dependencies

Let's install the various dependencies, we will need. We will be using the following libraries

  • Lanchain: A Framework to develop LLM applications
  • ChromaDB: This is the VectorDB, to persist vector embeddings
  • unstructured: Used for preprocessing Word/pdf documents
  • tiktoken: Tokenizer framework
  • pypdf: Framework to read and process PDF documents
  • openai: Framework to access OpenAI
pip install langchain
pip install unstructured
pip install pypdf
pip install tiktoken
pip install chromadb
pip install openai

Once these dependencies are installed successfully, create an environment variable to store the OpenAI keys that are created in the last step.


Let's start coding…

Create Vector Embeddings from the User Manual PDF and store it in ChromaDB

In the following code, we are importing all the dependent libraries and functions that we will be using.

import os
import openai
import tiktoken
import chromadb

from langchain.document_loaders import OnlinePDFLoader, UnstructuredPDFLoader, PyPDFLoader
from langchain.text_splitter import TokenTextSplitter
from langchain.memory import ConversationBufferMemory
from langchain.embeddings.openai import OpenAIEmbeddings
from langchain.vectorstores import Chroma
from langchain.llms import OpenAI
from langchain.chains import ConversationalRetrievalChain

In the following code read the PDF, tokenizing and splitting the document into tokens.

loader = PyPDFLoader("Clarett.pdf")
pdfData = loader.load()

text_splitter = TokenTextSplitter(chunk_size=1000, chunk_overlap=0)
splitData = text_splitter.split_documents(pdfData)

In the following code, we are creating a chroma collection, a local directory to store the chroma db. We are then creating a vector embedding and storing it in ChromaDB.

collection_name = "clarett_collection"
local_directory = "clarett_vect_embedding"
persist_directory = os.path.join(os.getcwd(), local_directory)

embeddings = OpenAIEmbeddings(openai_api_key=openai_key)
vectDB = Chroma.from_documents(splitData,

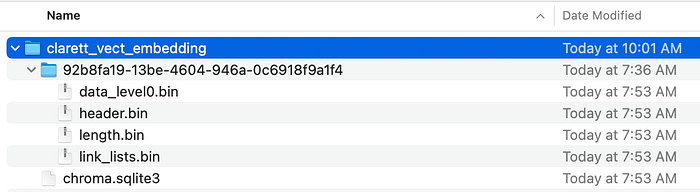

After you execute this code, you should see a folder created, that stores the vector embeddings

Now we have the vector embeddings stored in the ChromaDB. Let's now use the ConversationalRetrievalChain API in LangChain to initiate a chat history component. We will be passing the OpenAI object, initiated with GPT 3.5 turbo and the vectorDB we created. We will be passing ConversationBufferMemory that stores the messages.

memory = ConversationBufferMemory(memory_key="chat_history", return_messages=True)
chatQA = ConversationalRetrievalChain.from_llm(
temperature=0, model_name="gpt-3.5-turbo"),

Now that we have initialized the conversational retrieval chain, we can use it for chatting/Q&A. In the following code, we accept user inputs (questions) until the user types ‘done.’ We then pass the questions to the LLM to get a response and print it.

chat_history = []
qry = ""
while qry != 'done':
qry = input('Question: ')
if qry != exit:
response = chatQA({"question": qry, "chat_history": chat_history})

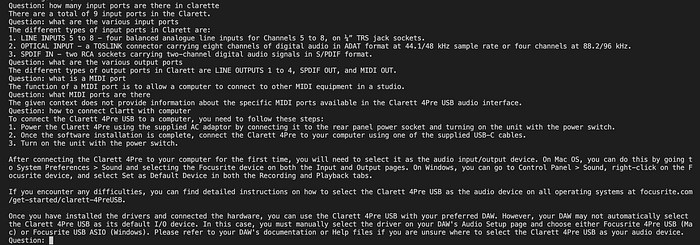

Here is the screenshot of the output.

As you can see, Retrieval Augmented Generation is a great technique that combines the strengths of language models like GPT-3 with the power of information retrieval. By enriching the input with context-specific information, RAG enables language models to generate more accurate and contextually relevant responses. In enterprise use cases where fine-tuning might not be practical, RAG offers an efficient and cost-effective solution to provide tailored and informed interactions with users.

Hope this was useful, Please provide your views, feedback, and comments. in the meantime, I will be publishing more blogs in this field, as I explore

Have a great time… Be right back!! until then stay safe…
